槽型混合機
詳細介紹

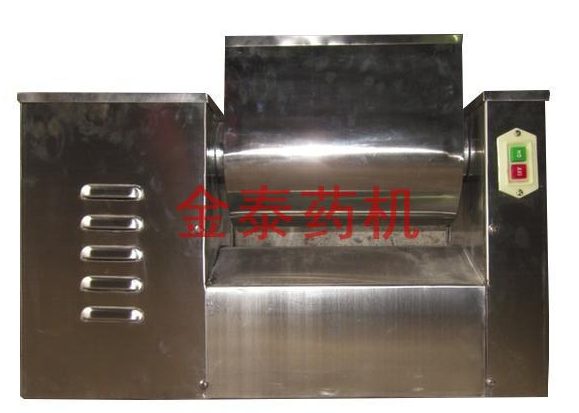

槽型混合機 Trough type mixer
概述 Description
用于混合粉狀或濕性物料，使不同比例主輔料混合均勻。本機與物料接觸處均采用不銹鋼制造，槳葉與桶身間隙小，混合無死角，攪料軸兩端沒有密封裝置，能防止物料外瀉，廣泛適用于制藥、化工、食品等行業。
CH type mixer is wide used for mixing powder or wet raw materials and can make the main and auxiliary raw materials contact are made from stainless steel.The gap between blades is small and there is no dead corner in mixing.At the ends of stirring shaft，there are seal devices.It can prevent from the raw materials rushing out.It is wide used for pharmaceutical，chemical，foodstuff and so on industries.
技術參數 Technical parameters
概述 Description
用于混合粉狀或濕性物料，使不同比例主輔料混合均勻。本機與物料接觸處均采用不銹鋼制造，槳葉與桶身間隙小，混合無死角，攪料軸兩端沒有密封裝置，能防止物料外瀉，廣泛適用于制藥、化工、食品等行業。
CH type mixer is wide used for mixing powder or wet raw materials and can make the main and auxiliary raw materials contact are made from stainless steel.The gap between blades is small and there is no dead corner in mixing.At the ends of stirring shaft，there are seal devices.It can prevent from the raw materials rushing out.It is wide used for pharmaceutical，chemical，foodstuff and so on industries.
技術參數 Technical parameters
|
型號 type |
工作容積working capacity |
主軸轉速
(r/min)
main arm speed |
主電機(kw) main motor |
倒料電機(kw) dumping motor |
外形尺寸
(L×W×H)
dimensions |
整機重量 weight |
| CH-50 | 50 | 24 | 1.1 | 0.75 | 1000×425×800 | 260 |
| CH-100 | 100 | 24 | 2.2 | 0.75 | 1300×460×950 | 300 |
| CH-150 | 150 | 25 | 3 | 0.75 | 1480×600×1190 | 800 |
| CH-200 | 200 | 25 | 4 | 0.75 | 1660×600×1190 | 850 |
| CH-300 | 300 | 28 | 7.5 | 1.1 | 1900×680×1200 | 950 |
| CH-400 | 400 | 28 | 7.5 | 1.1 | 2150×730×1220 | 1100 |
