槽型混合機
詳細介紹

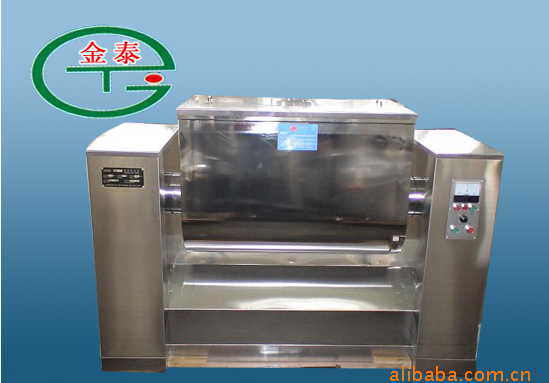

槽型混合機 CH150/150B/200/200B
Trough type mixing machine
概述 Descriptions
CH150，CH200槽型混合機用于混合粉狀或糊狀的物料，使不同質的物料混合均勻，其特點是臥式槽單槳混合，攪拌槳為活絡式，便于清洗。與物料接觸處全不銹鋼制成，有良好的耐腐蝕性。混合槽可自動翻轉側料，混合時間也可自動控制。
CH150B,CH200B,槽型混合機除了具有CH150，CH200機的特點外，整個的外圍不銹鋼板覆蓋，更易于清潔和保養。符合藥品生產的GMP要求。
CH150,CH200 Trough type mixing machine is designed for thoroughly mixing powders or pastes.It is a horizontal trough type mixer with singer stirring arm.The stirring arm is removable so that is easy to clean.The part is surfaces which may touch the mixing materials are made of staineless steel.So they are good corrosion-resistant，the mixing through can automatically reverse for discharge and the mixing time can be automatically controlled.
CH150B,CH200B Trough type mixing machine is designed on rhe base of the former CH150,CH200 The configuration employ stainless steel that is easy to clean and maintaining and meet GMP standard.
技術參數 Technical parameters
Trough type mixing machine
概述 Descriptions
CH150，CH200槽型混合機用于混合粉狀或糊狀的物料，使不同質的物料混合均勻，其特點是臥式槽單槳混合，攪拌槳為活絡式，便于清洗。與物料接觸處全不銹鋼制成，有良好的耐腐蝕性。混合槽可自動翻轉側料，混合時間也可自動控制。
CH150B,CH200B,槽型混合機除了具有CH150，CH200機的特點外，整個的外圍不銹鋼板覆蓋，更易于清潔和保養。符合藥品生產的GMP要求。
CH150,CH200 Trough type mixing machine is designed for thoroughly mixing powders or pastes.It is a horizontal trough type mixer with singer stirring arm.The stirring arm is removable so that is easy to clean.The part is surfaces which may touch the mixing materials are made of staineless steel.So they are good corrosion-resistant，the mixing through can automatically reverse for discharge and the mixing time can be automatically controlled.
CH150B,CH200B Trough type mixing machine is designed on rhe base of the former CH150,CH200 The configuration employ stainless steel that is easy to clean and maintaining and meet GMP standard.
技術參數 Technical parameters
| 參數 name/型號 model | 200 | 200B | 100 | 100B |
|
工作容積（升）/ working volume（L） |
200 | 200 | 150 | 150 |
|
攪拌槳轉速（轉/分） Mixing arm speed（r/min） |
24 | 24 | 24 | 24 |
|
混合槽翻轉角度（度） Titing angle of the trough（。） |
105 | 105 | 105 | 105 |
|
主電機功率（千瓦） Main motor power（kw） |
3 | 3 | 3 | 3 |
|
副電機功率（千瓦） Vice motor power（kw） |
0.55 |
0.55 |
0.55 |
0.55 |
|
外形尺寸（L*W*H）(毫米) dimension（L*W*H）（mm） |
1660*600*1190 |
1660*600*1190 |
1480*600*1190 | 1485*6858*1125 |
|
機器凈重（公斤） weight（KG） |
850 | 850 | 800 | 800 |
