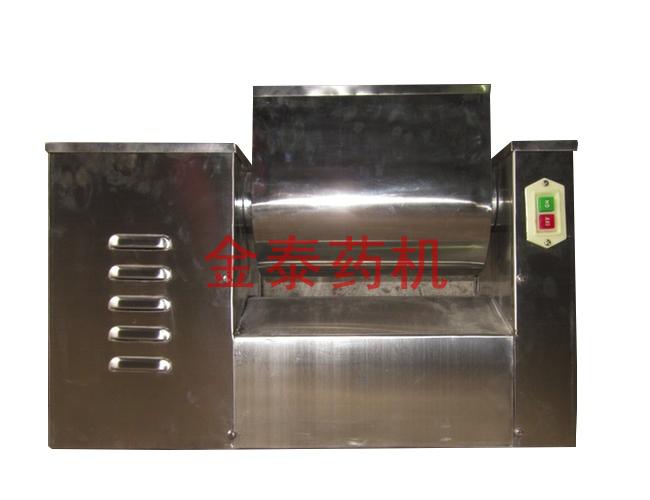

槽型混合機 Trough type mixer

概述 Description

用于混合粉狀或濕性物料，使不同比例主輔料混合均勻。本機與物料接觸處均采用不銹鋼制造，槳葉與桶身間隙小，混合無死角，攪料軸兩端沒有密封裝置，能防止物料外瀉，廣泛適用于制藥、化工、食品等行業。

CH type mixer is wide used for mixing powder or wet raw materials and can make the main and auxiliary raw materials contact are made from stainless steel.The gap between blades is small and there is no dead corner in mixing.At the ends of stirring shaft，there are seal devices.It can prevent from the raw materials rushing out.It is wide used for pharmaceutical，chemical，foodstuff and so on industries.

技術參數 Technical parameters

型號 type	工作容積working capacity	主軸轉速 (r/min) main arm speed	主電機(kw) main motor	倒料電機(kw) dumping motor	外形尺寸 (L×W×H) dimensions	整機重量 weight
CH-50	50	24	1.1	0.75	1000×425×800	260
CH-100	100	24	2.2	0.75	1300×460×950	300
CH-150	150	25	3	0.75	1480×600×1190	800
CH-200	200	25	4	0.75	1660×600×1190	850
CH-300	300	28	7.5	1.1	1900×680×1200	950
CH-400	400	28	7.5	1.1	2150×730×1220	1100
