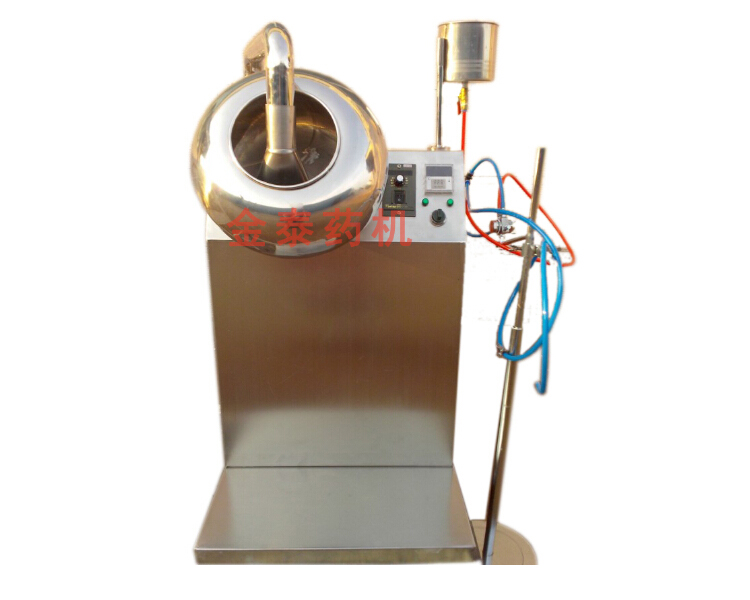

BY-300
Category：Coating machine
- Hits：
- Date：2014/09/08
Details
This series of products are divided into: BY200 - 500 type
In this series, the food industry pharmaceutical tablet, pill wrapping sugar-coated. It is also used for rolling and copy the beans, fruits mature in. Its characteristics are sugar-coated pan tilt angle to the horizontal upward 30 degrees, can be placed under the pot furnace, gas direct heating equipment.Randomly attached to a separate electric blower, outlet pipe extends into the inner ball can be used for heating or air cooling, heat can be divided second adjustment.
Technical parameters
|
parameters＼ TYPE
|
BY200
|
BY300
|
BY400
|
BY500
|
|
Diameter of coating machine（mm）
|
200
|
300
|
400
|
500
|
|
Sugar pot speed（r/min）
|
（1-46）
|
（1-46）
|
（1-46）
|
50
|
|
Main motor power (KW)
|
0.55
|
0.55
|
0.55
|
0.75
|
|
Power of blower （W） |
40
|
60
|
60
|
100
|
|
Heating wire power（W）
|
700
|
700
|
700
|
800
|
|
production capacity（kg/T）
|
0.5
|
2-3
|
3-5
|
20-30
|
|
Dimensionmm
|
200×300×450
|
550×400×850
|
550×400×850
|
650×450×920
|
|
weight（kg）
|
10
|
30
|
30
|
50
|
