三維混合機

所屬分類：混合機
點擊次數：
發布日期：2014/03/15
更多
在線詢價

詳細介紹

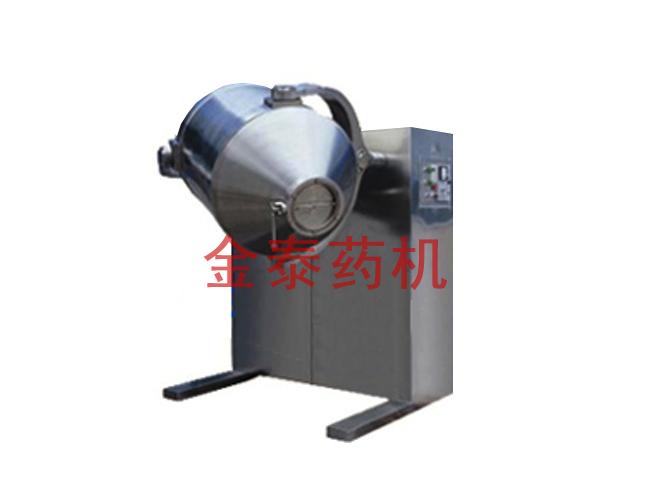

三維混合機 three-dimensional mixer

主要用途 main application

本機適用于制藥、化工、食品等行業的干粉物料混合，對不同比重和不同粒度的幾種物料也能進行快速而均勻的混合。

The machine is widely applied for themixing of powder material by pharmacy，chemical，and foodstuff industries，as well as for the quick and even mixing of various materials in different granules size and gravity.

特點 feature

該機利用獨特的三度擺動，平移轉動及搖滾原理，產生一股強力的交替脈沖運動，連續不斷地推動進行混合物料，其產生的渦流具有變換的能量梯度，從而能產生出色的混合效果。該機還具有運轉平穩、噪音低、裝載系數高、混合時間短等優點。

With its unique three-dimension swing，parallel moving，and rolling methods，this mixer can generate strong pulse movement to push forward and to mix the target materials continuously.The excellent mixing effects are the result of its changeable vortexmovement that possesses the energy grades inside.It also the merits of smooth running,low noise,high loading quotidty, and short mixing time as well.

技術參數 technical parameters

規 格 specification	混合桶容積（L） volume of the mixing barrel	最大裝料容積（L） max loading volume	主軸轉速（r/min） spindle speed	功率 power	重量 weight
SBH-5	5	4	0-30	0.55	45
SBH-10	10	5	0-30	0．55	50
SBH-20	20	16	0-12	0．55	100
SBH-50	50	40	0-12	1．5	300
SBH-100	100	80	0-12	2．2	700
SBH-200	200	160	0-12	4	1500
SBH-300	300	240	0-12	4	160
SBH-400	400	320	0-12	4	1700
SBH-500	500	400	0-12	5．5	2100
SBH-600	600	480	0-12	5．5	2400
SBH-800	800	640	0-12	7．5	2500
SBH-1000	1000	800	0-12	7．5	2550
SBH-1500	1500	1200	0-12	11	3100
