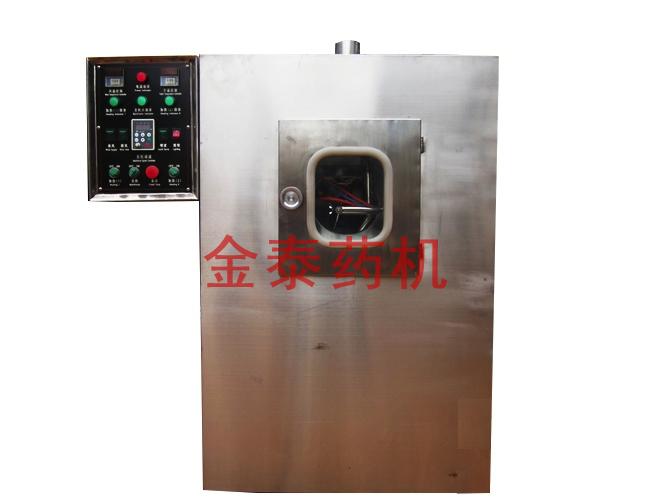

Fully enclosed coating machine
Category：Coating machine
- Hits：
- Date：2014/09/08
Structure features:
This unit is mainly composed of mainframe, for wind, wind, for spray system. Stepless speed by frequency converter, for the wind through the tertiary purification, exhaust air through the filter, spray use high atomized spray gun. Air temperature, temperature, liquid temperature is adjustable and controllable, the entire coating process in a confined space, and has no pollution, easy cleaning maintenance, and low cost.technical parameters：
|
name/ type |
BGc-400型 |
BGc-800型 |
BGc-1000型 |
BGc-1250型 |
|
Coating pot diameter (mm) |
400 |
800 |
1000 |
1250 |
|
production capacity (kg/次) |
3--5 |
30-50 |
50-70 |
80-150 |
|
The wind temperature adjusting range (℃) |
常溫一 110 |
常溫一 110 |
常溫— 110 |
常溫一 110 |
|
rotational speed of the main engine(r/min) |
1.5-46 |
1.5-40 |
1.5-32 |
1.5-28 |
|
Main motor power (kw) |
0.55 |
1.1 |
1.5 |
2.2 |
|
For the fan power (kw) |
0.04 |
0.75 |
0.75 |
0.75 |
|
heating power (kw) |
0.6 |
3 |
3.5 |
3.5 |
|
Exhaust fan power (kw) |
0.1 |
1.5 |
1.5 |
2.2 |
|
illumination (w) |
18 |
18 |
20 |
20 |
|
dimension (mm) |
800X800X1200 |
1000X1000X1300 |
1200X1200X1450 |
1350X135X1600 |
